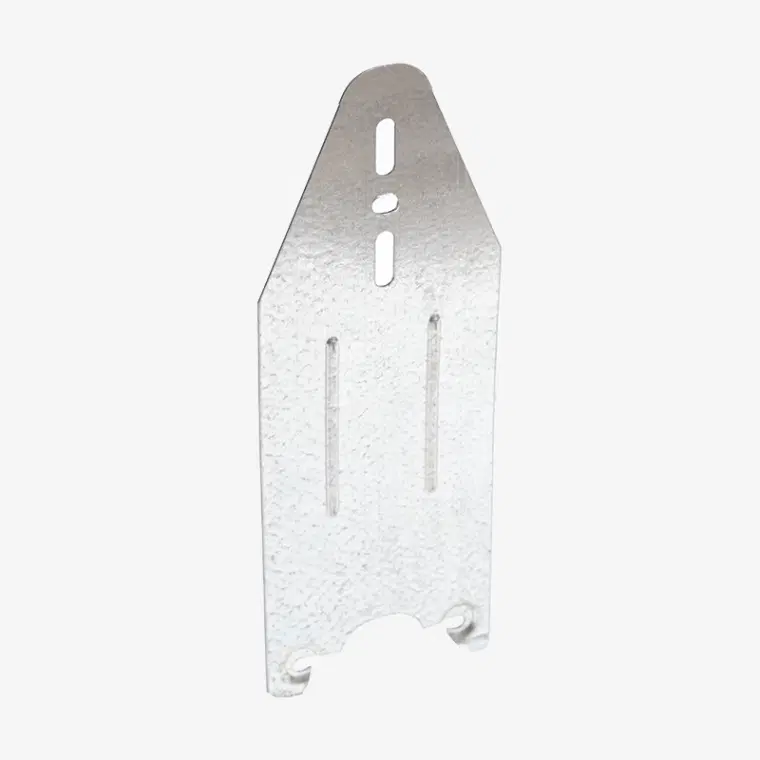

M29/M308 DIRECT FIX CLIP - LONG

Product details

The Studco BetaFix clip is a ‘direct fix’ clip designed for use with Studco 28mm and 16mm furring channel. The clip allows adjustment on the furring channel via four location slots, which are useful when the wall substrate is uneven or when larger/smaller wall cavities are required for services or insulation. For a faster and more accurate installation, use Studco BetaFix clips when installing furring channels in wall applications. The MBF BetaFix short adjustable direct fix clip creates a wall cavity depth between 30 – 48mm from the structure to face of the furring channel (applicable to M29 28mm Furring Channel installations). The MBFS BetaFix long adjustable direct fix clip creates a wall cavity depth between 54 – 72mm from the structure to face of the furring channel (applicable to M29 28mm Furring Channel installations). The MBFI BetaFix extra-long adjustable direct fix clip creates a wall cavity depth between 78 – 96mm from the structure to face of the furring channel (M29 28mm Furring Channel installations).
